Sizing and Area Requirements

No. Of Persons

capacity (LPD)*

Area Required

(Sq ft.)**

(Sq M.)**

2 - 3

100

20

2

4 - 5

200

40

4

6 - 7

300

62

6

* Assumption - System caters to single bathroom and one time utilisation in a day. Sizing will change if hot water connection is for multiple bathrooms/utility. Please consult delaers/company for guidance.

** Approximate footprint of Solar Water Heating system only. Does not cover piping, accessories and front space of shadow causing things like parapet wall.

Key Features

● Efficient even in partially cloudy/foggy days

● Electric Backup to maintain the temperature

● Low Maintenance and easy to clean

● Best in class heat retention

● Quick heat generation

● Cost Efficient

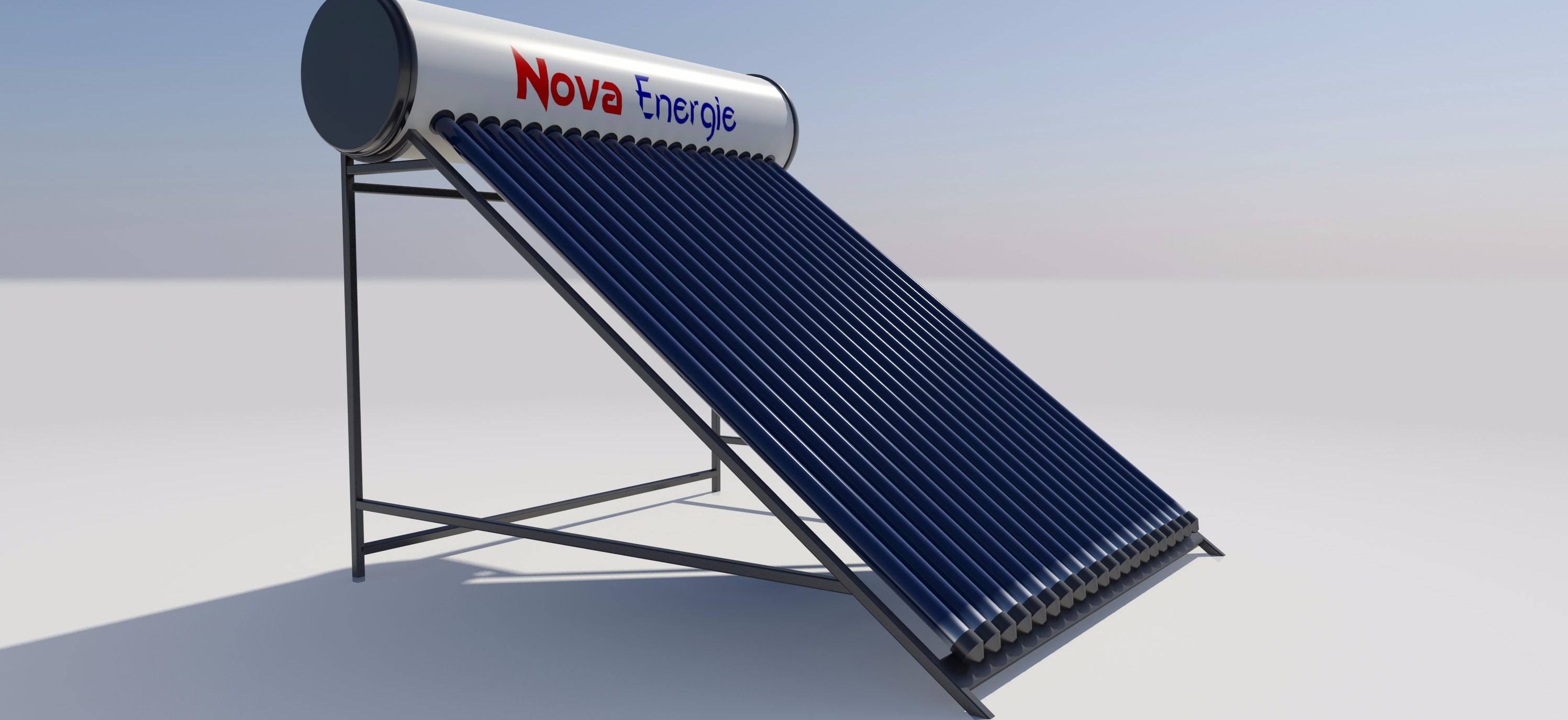

GLEAM  - (ETC) Solar Water Heater

Capacity

LPD

100

200

300

500

1000

Number of Tubes

58x1800

10

20

30

34**

80

Operation Type

Non - Pressurised

MOC - Shell

Galvanised Iron

Shell Thickness

MM

1.5

1.5

1.5

1.5

1.5

MOC - Cladding

Pre Coated GI (Galvanised Iron)

Insulation

Polyurethane Foam (PUF)

  ** Available in tube size of 58x2100mm

BLAZE  - (ETC) Solar Water Heater

Capacity

LPD

100

200

300

500

1000

Number of Tubes

58x1800

10

20

30

34**

80

Operation Type

Non - Pressurised

MOC - Shell

Mild Steel - Epoxy Coated

Shell Thickness

MM

2.0

2.0

2.0

2.0

2.0

MOC - Cladding

Pre Coated GI (Galvanised Iron)

Insulation

Polyurethane Foam (PUF)

  ** Available in tube size of 58x2100mm

SHEEN  - (ETC) Solar Water Heater

Capacity

LPD

100

200

300

500*

1000*

Number of Tubes

58x1800

10

20

30

40

80

Operation Type

Non - Pressurised

MOC - Shell

Stainless Steel - 304

Shell Thickness

MM

0.5/1.0

0.5/1.0

0.5/1.0

0.5/1.2

0.5/2.0

MOC - Cladding

Pre Coated GI (Galvanised Iron)/Stainless Steel - 430

Insulation

Polyurethane Foam (PUF)

  * Available with/without Heat Exchanger with manifold
